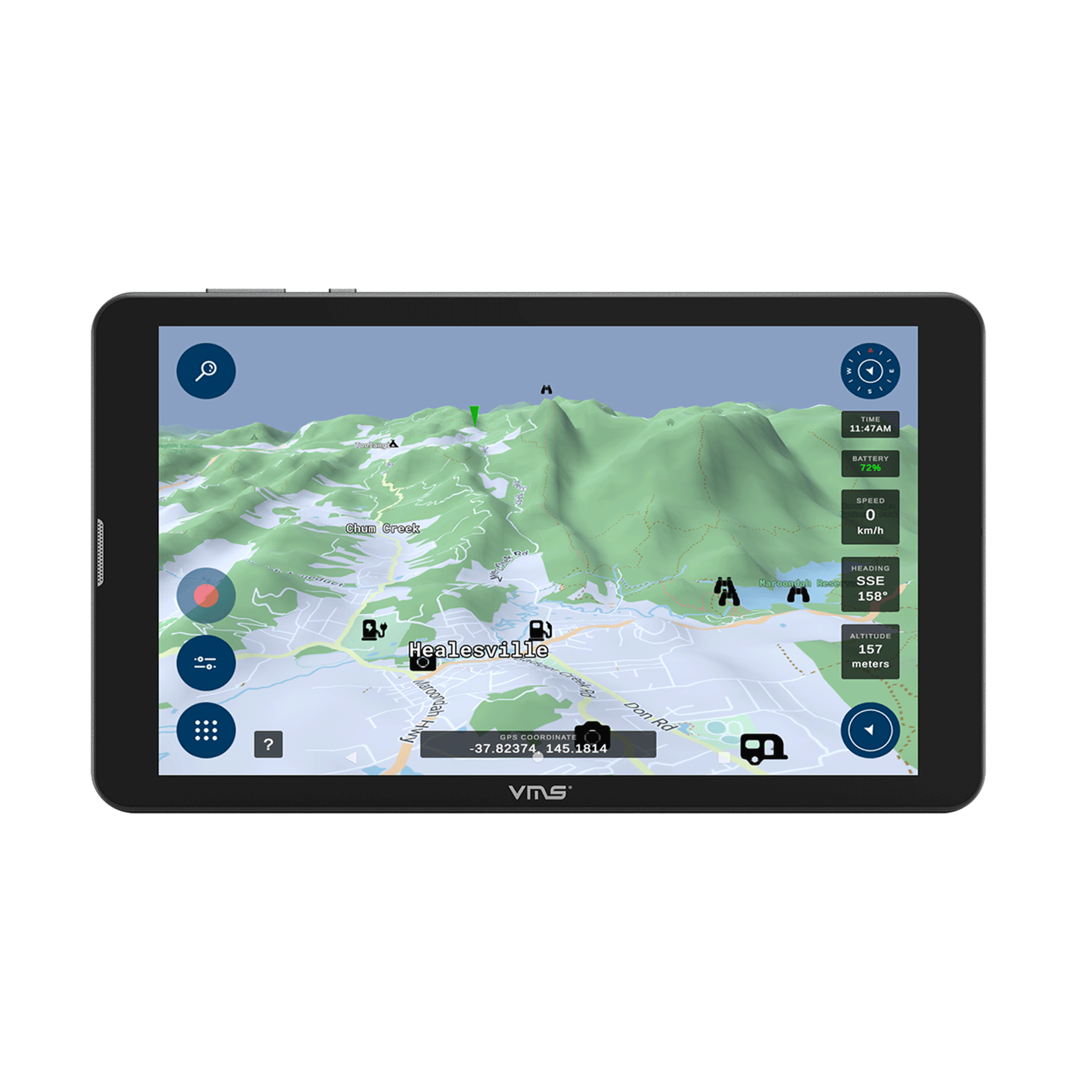

VMS 3DX with a view of  3D vector maps showvcasing the terrain of Healsville  along with it's POIs
  • VMS 3DX with a view of  3D vector maps showvcasing the terrain of Healsville  along with it's POIs
  • VMS 3DX main menu

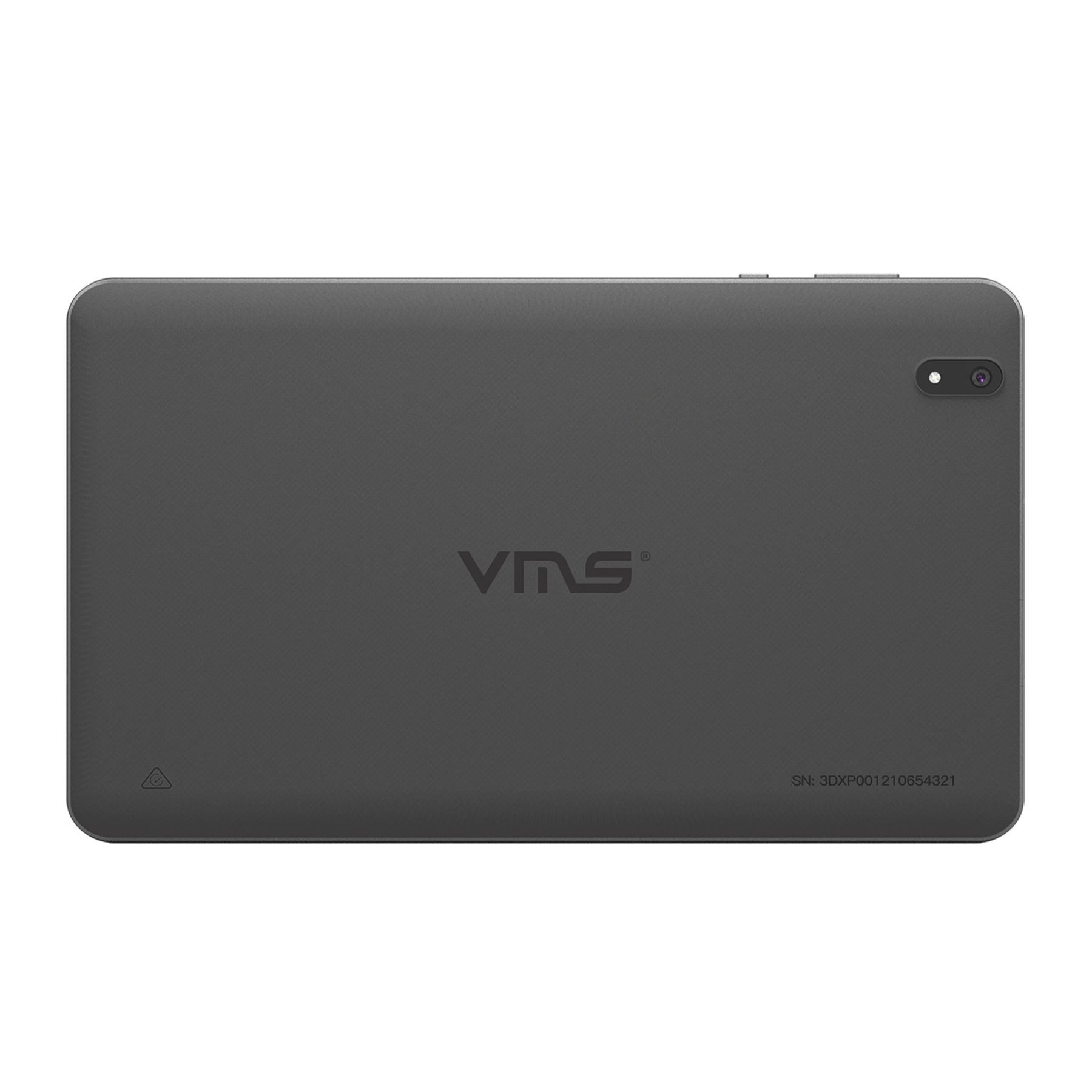

  • VMS 3DX back panel

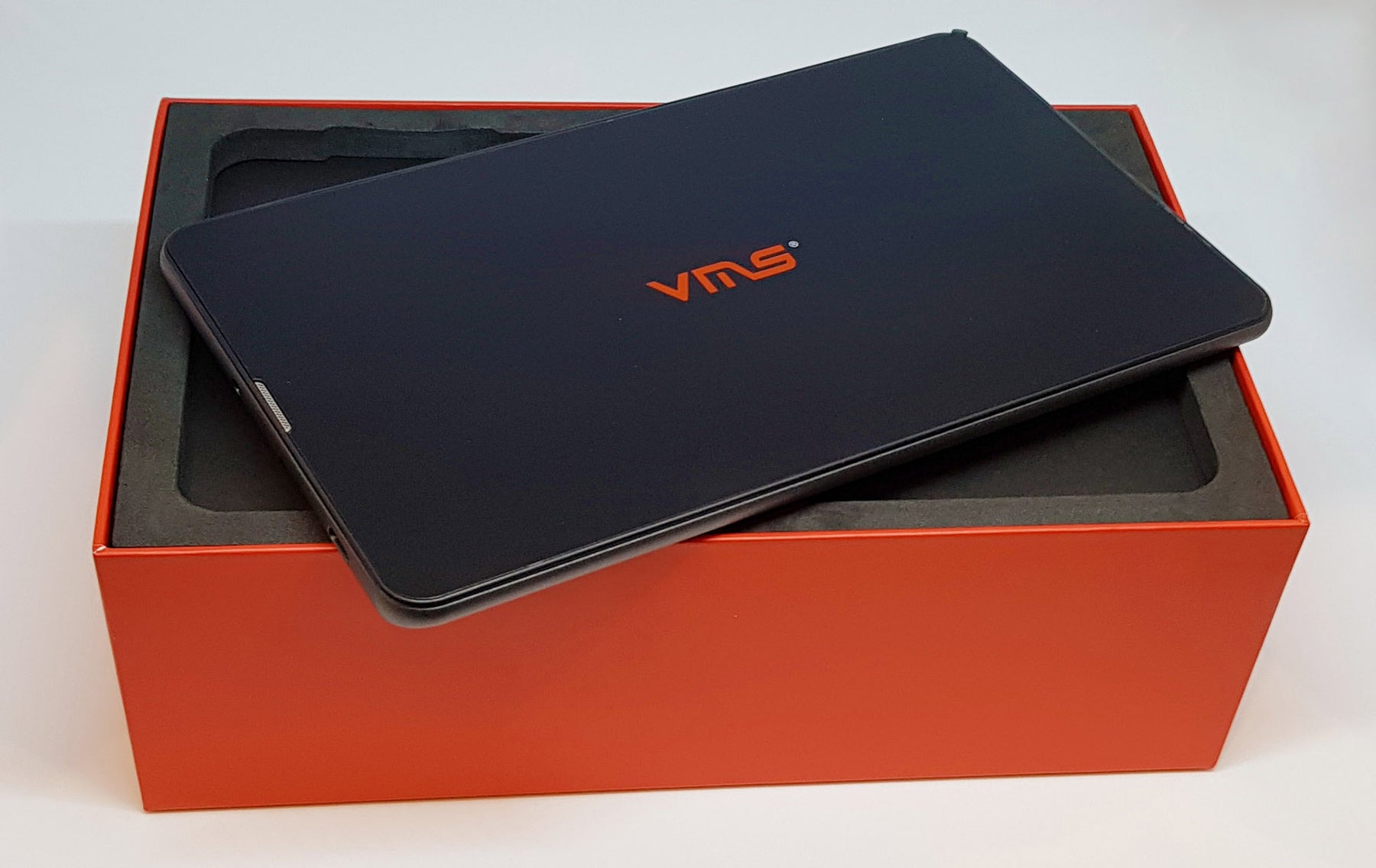

  • VMS 3DX unit on top it's retail box
  • VMS 3DX retail box
  • In the box


* VIC Topo 25k and other raster maps will not be preloaded on the device and will be sold separately.



3D Vector map with elevation profile

The new VMS explorer navigation enables you to see and feel the terrain in 3D and measure the elevation as well. Navigate your way through the road/track network and easily determine your location in relation to mountains, valleys and other topographical features. Evaluate a track's gradient at a glance!


Better location accuracy with offline navigation

The new VMS 3DX gets you an accurate location as it has inbuilt GPS which supports multiple GNSS technologies such as GPS,AGPS,GLONASS and BEIDOU. So you will never be stuck or lose the track of your location since there are preloaded offline maps along with the the in-built GPS system that connects to multiple satellites to provide you the accurate location for your offroading experience.


Single navigation system

The new VMS explorer navigation is a single system that takes care of both street and offroad navigation. You don't have to worry about going to a seperate mode anymore whenever you ready to go offroad.


CAMPS11 Premimum POIs with Caravan park 6

The new VMS 3DX comes with preloaded CAMPS11 Premium POIs with CARAVAN PARK 6, Premium Caravan Parks - 2212 locations. 5,699 locations of free or low cost camping sites. Includes free camping sites, Campgrounds, Caravan Parks, Hotels, Motels & dump points. So this bring us to total of 7,911 verified locations.

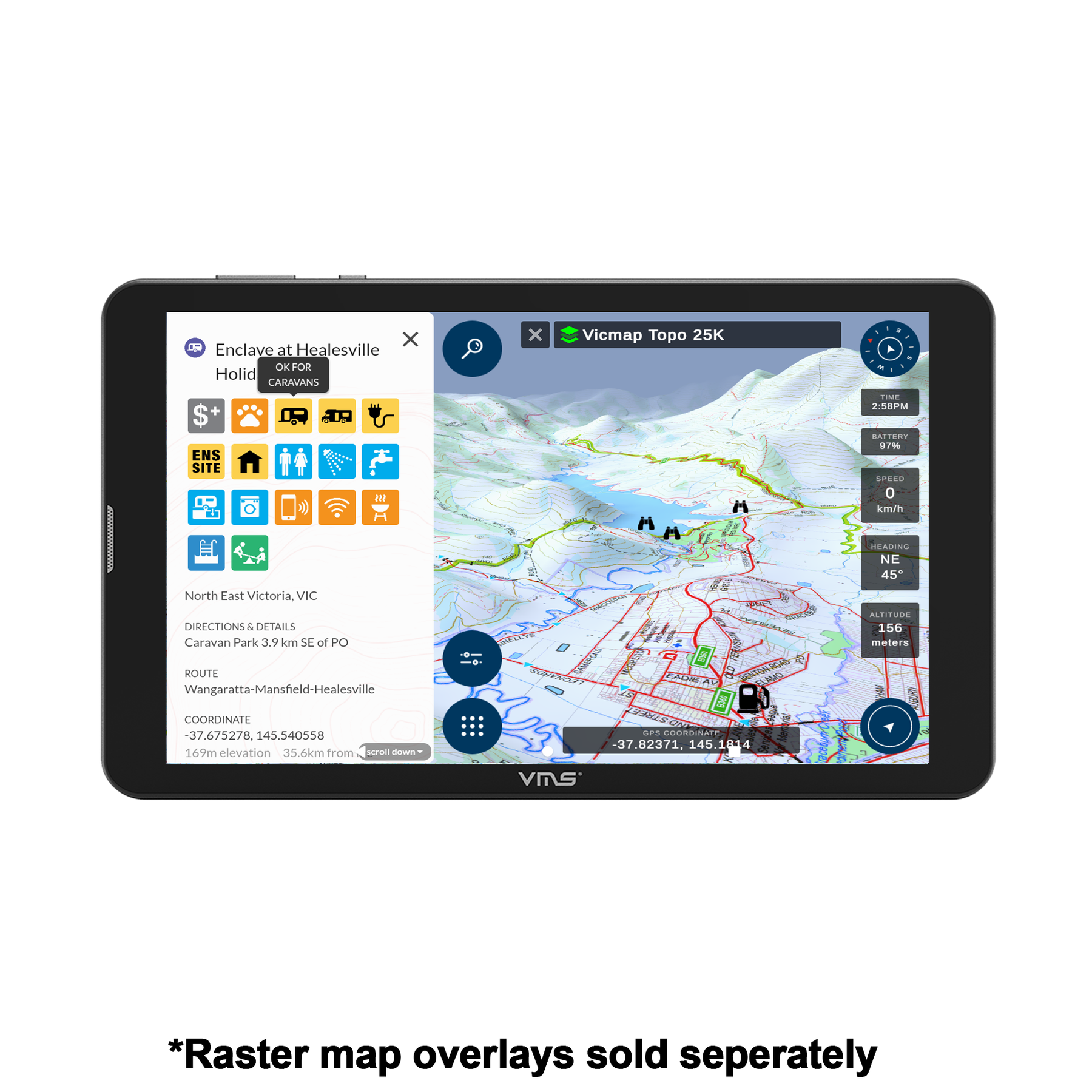

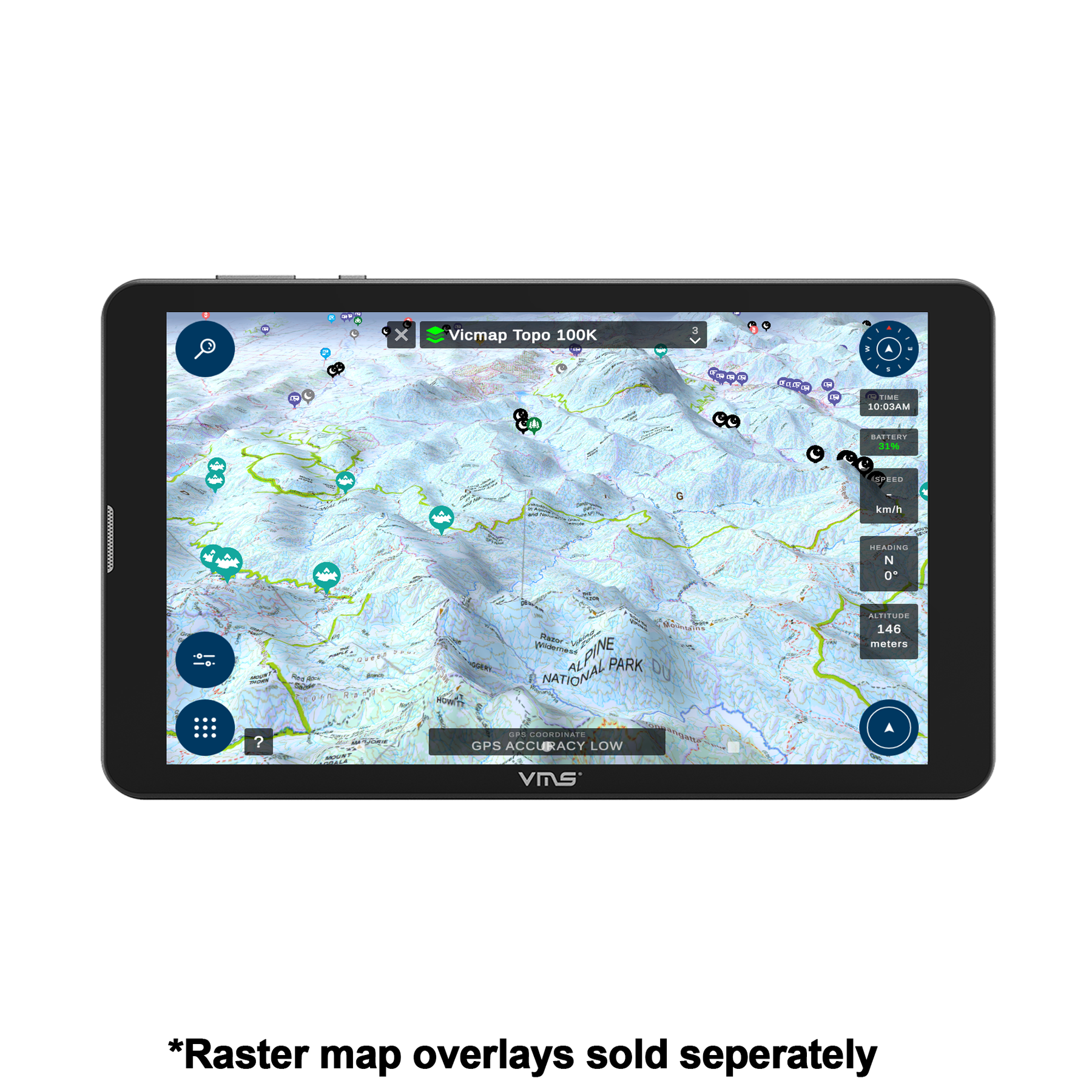

Overlay and use your favourite Raster maps

The new VMS 3DX will allow you the ability to purchase and install from VMS their broad range of Topographical and Touring maps - to be able to overlay them over the 3D terrain. (Current map sets are: Vic Topo, NSW Topo, QLD Topo, WA Topo & Westprint touring maps)


Record your Tracklogs

The new VMS 3DX enables you to keep a record of all your offroad journeys and helps you plan routes. It also gives you the ability to import or export GPX files which means you can have a backup of your tracklogs. This will enable you to plan routes or view past adventures on other devices using suitable mapping software.


Spoken Offroad Routing

The latest map software can give voice routing commands for the pre-loaded offroad trails and tracks (Provided the track is contiguous to the rest of the road network).


Reverse camera support

A compatible reverse camera kit will be available in an upcoming update.


Key Specifications

Hardware
Unit dimensions (W*H*D) 208*127*9.3 (in mm)
Display size 8" diagonal (20.32 cm)
Display resolution 1200*800
Battery 4000mAh Cobalt (High temp resistance)
Connections Type-C USB, microSD card and sim slot, audio jack
Camera 5-megapixel rear camera
Processor UNISOC T618 2.0 GHz
(8 cores 2*Cortex A75 +6*Cortex A55)
Operating System Android 10
Warranty 12 months warranty on hardware
Charging port Type-C USB
System memory
Internal memory 32GB
RAM 4GB
Expandable memory microSD card up to 128GB
Communication
Bluetooth 5
Wifi 802.11 a/b/g/n/ac
Network 4G LTE and 3G supported

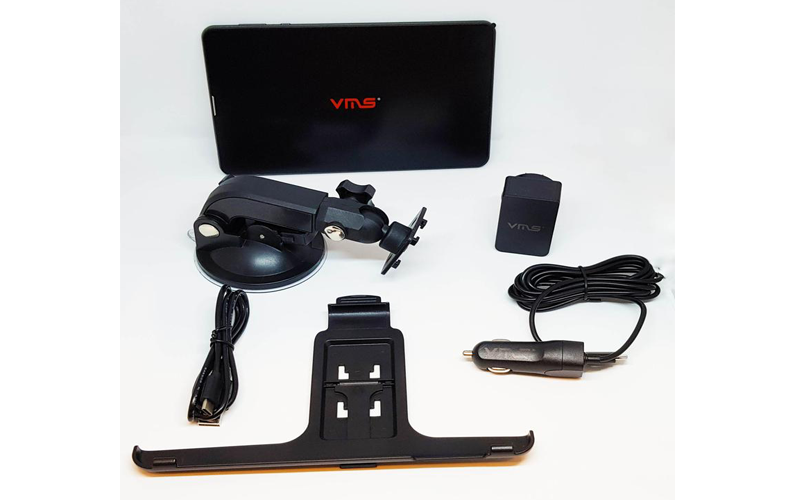

In the box VMS 3DX unit
Type- C USB cable
240V wall charger
12V/24V 2A car charger
Windscreen mount and bracket
